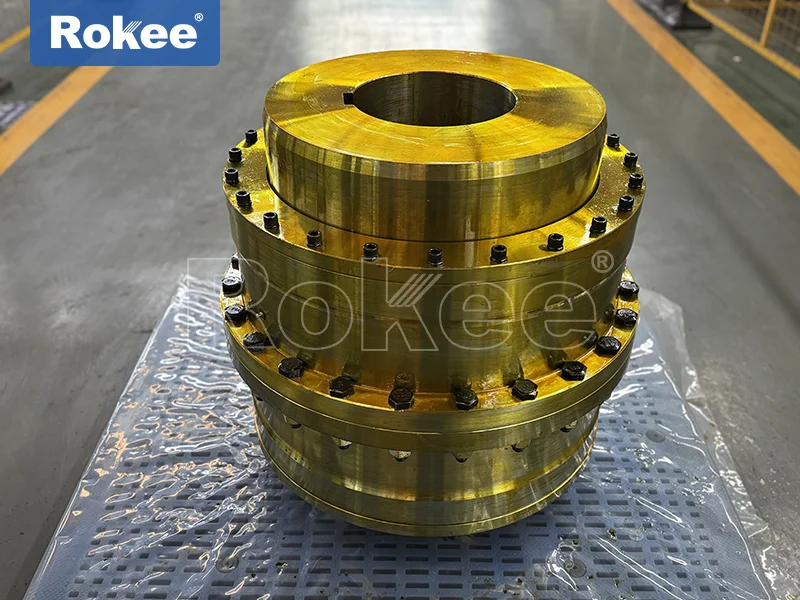

Special Curved Tooth Coupling For PU Sandwich Panel Making Machine Adapting To Various Working Conditions

In the modern manufacturing industry, the PU sandwich panel making machine plays an irreplaceable role in the production of high-performance composite panels, which are widely used in construction, cold storage, and other fields due to their excellent thermal insulation, sound insulation, and structural strength. The stable and efficient operation of this kind of equipment is closely related to the performance of each core component, among which the coupling, as a key part connecting the power source and the working mechanism, directly affects the transmission efficiency, operation stability, and service life of the entire production line. The special curved tooth coupling designed for PU sandwich panel making machines is developed to adapt to the complex and variable working conditions of such equipment, breaking the limitations of traditional couplings and providing reliable power transmission support for the continuous and stable operation of the production line.

PU sandwich panel making machines often face various harsh working conditions during their operation, which puts forward strict requirements on the performance of couplings. Unlike general mechanical equipment, the production process of PU sandwich panels involves multiple links such as uncoiling, leveling, forming, foaming, compounding, and cutting, each of which has different load characteristics and operating speeds. For example, during the uncoiling and leveling process, the equipment needs to bear intermittent impact loads due to the weight of the metal coil and the adjustment of the leveling roller; in the foaming and compounding stage, the machine runs at a stable speed, but it needs to maintain high transmission accuracy to ensure the uniformity of the panel thickness and the bonding effect of the foam core; when switching between different panel specifications, the equipment will have speed changes and load fluctuations, which requires the coupling to have good adaptability and shock absorption performance. In addition, the working environment of the production line may have dust, temperature changes, and even slight vibrations, which further increases the difficulty of power transmission and requires the coupling to have strong environmental adaptability and durability.

The special curved tooth coupling for PU sandwich panel making machine is designed with targeted optimization based on the above working characteristics, and its unique structural design makes it have obvious advantages in adapting to various working conditions. Compared with the traditional straight tooth coupling, the curved tooth structure of this coupling adopts a three-dimensional curved tooth profile design, in which the outer gear sleeve is made into a spherical drum structure, and the center of the sphere is on the gear axis. This special design not only increases the tooth clearance by about 50% compared with straight teeth but also has excellent angular displacement compensation capacity, which can effectively compensate for the angular deviation between the driving shaft and the driven shaft caused by installation errors, equipment vibration, or component deformation during operation. Generally, the allowable angular displacement of this kind of curved tooth coupling can reach 1°30′, which is 50% higher than that of straight tooth couplings, ensuring that the power transmission remains stable even when the shafts are misaligned, thus avoiding the occurrence of excessive wear, noise, or even component damage caused by shaft misalignment.

Another key advantage of the special curved tooth coupling is its strong torque transmission capacity and stable load-bearing performance. The production process of PU sandwich panel making machines often requires transmitting large torques, especially in the forming and compounding stages, where the equipment needs to drive heavy rollers and transmission mechanisms to work stably. The curved tooth design of the coupling increases the contact area between the teeth, making the load distribution more uniform, thus improving the torque transmission capacity. Compared with traditional straight tooth structures, the torque transmission capacity of the curved tooth coupling can be increased by 40%, which can fully meet the torque requirements of PU sandwich panel making machines under different working conditions. At the same time, the curved tooth profile design reduces the stress concentration on the tooth surface, avoids edge contact between the teeth when the maximum axial inclination angle occurs, and optimizes the load distribution by selecting an appropriate drum curvature radius. Generally, the drum curvature radius is related to the modulus of the gear, and the commonly used value range is 8-15, which can effectively reduce the contact stress on the tooth surface and prolong the service life of the coupling.

In terms of adapting to variable working speeds and load fluctuations, the special curved tooth coupling also shows excellent performance. The production speed of PU sandwich panel making machines needs to be adjusted according to the specifications of the panels and the performance of the foam, generally ranging from 3 to 15 meters per minute. When the speed changes, the coupling needs to quickly adapt to the changes in rotational speed and torque to ensure the stability of the transmission system. The curved tooth structure of the coupling has good flexibility, which can absorb the impact generated by speed changes and load fluctuations, reduce the vibration of the transmission system, and avoid the occurrence of resonance. In addition, the gap between the teeth of the coupling is reasonably designed, which can not only compensate for the axial displacement but also reduce the impact of the tooth surface during meshing, ensuring smooth operation even under frequent speed changes. This is particularly important for the PU sandwich panel production line, because the stability of the transmission system directly affects the quality of the panels, such as the flatness of the panel surface, the uniformity of the foam core, and the accuracy of the cutting length.

The adaptability to harsh working environments is another important feature of the special curved tooth coupling. The PU sandwich panel making machine will generate a certain amount of dust and debris during the uncoiling and cutting processes, and the foaming stage may involve changes in ambient temperature, which requires the coupling to have good dustproof and high-temperature resistance. The special curved tooth coupling is usually made of high-quality alloy steel, which has high hardness, wear resistance, and corrosion resistance. After strict heat treatment, the surface hardness of the gear teeth can reach a high level, which can effectively resist wear caused by dust and debris. At the same time, the coupling is equipped with a reliable sealing structure, which can prevent dust, moisture, and other impurities from entering the meshing surface of the teeth, avoiding the occurrence of tooth surface wear and corrosion. In terms of temperature adaptability, the coupling can work stably in a wide temperature range, generally from -25°C to 120°C, and can even withstand short-term high temperatures up to 120°C, which fully meets the temperature requirements of the PU sandwich panel production line during operation. Some couplings also adopt special material combinations, such as steel and polyamide, which not only improve the friction performance of the tooth surface but also achieve maintenance-free operation, further enhancing the adaptability to harsh working environments.

The structural design of the special curved tooth coupling also takes into account the convenience of installation and maintenance, which is of great significance for improving the production efficiency of the PU sandwich panel making machine. The coupling adopts a split structure, which can be easily installed and disassembled without moving the connected equipment, greatly reducing the installation and maintenance time. The bolts used in the coupling are standardized, and the parts have good universality, which is convenient for quick replacement of wearing parts when necessary. In addition, the lubrication system of the coupling is reasonably designed. Good lubrication can not only reduce the wear between the tooth surfaces but also take away the heat generated by meshing, preventing the degradation of material performance. Generally, thin oil lubrication is adopted, which can reduce the wear to about 10% of that of grease lubrication, effectively prolonging the service life of the coupling. The lubrication system is also designed to be easy to maintain, which is convenient for regular oil change and inspection, ensuring the long-term stable operation of the coupling.

In practical application, the special curved tooth coupling has been widely used in various types of PU sandwich panel making machines, including small semi-automatic production lines, medium-sized automatic production lines, and large fully automatic production lines, and has shown excellent adaptability and reliability in different working conditions. For example, in a large fully automatic PU sandwich panel production line with an annual output of 1.2 million square meters, the special curved tooth coupling is used to connect the motor and the rolling forming machine, which can stably transmit large torques and compensate for the slight misalignment between the shafts caused by the long-term operation of the equipment. Even under the condition of continuous operation for 24 hours, the coupling can still maintain stable performance, without obvious wear or failure, ensuring the continuous and efficient operation of the production line. In a small semi-automatic production line, the coupling can adapt to frequent speed changes and load fluctuations during the switching of panel specifications, ensuring the stability of the transmission system and the quality of the produced panels.

The design and optimization of the special curved tooth coupling are closely combined with the working characteristics of the PU sandwich panel making machine. In the design process, the factors such as the working speed, torque, load characteristics, and environmental conditions of the production line are fully considered, and the structure and parameters of the coupling are optimized through theoretical calculation and experimental verification. For example, the drum curvature curve of the curved tooth is accurately designed to avoid edge contact between the teeth and optimize the load distribution; the material selection is strictly controlled to ensure that the coupling has sufficient strength and wear resistance; the sealing structure is optimized to improve the dustproof and waterproof performance. These design measures make the coupling can perfectly adapt to the complex and variable working conditions of the PU sandwich panel making machine, and provide reliable power transmission support for the production line.

With the continuous development of the PU sandwich panel industry, the requirements for the performance of the production equipment are getting higher and higher, which also puts forward new requirements for the special curved tooth coupling. In the future, with the application of new materials, new processes, and new technologies, the performance of the special curved tooth coupling will be further improved. For example, the application of carbon fiber-reinforced materials can reduce the weight of the coupling while improving its strength and wear resistance; the adoption of intelligent monitoring technology can realize real-time monitoring of the operating state of the coupling, timely find potential faults, and improve the reliability and service life of the coupling. At the same time, the design of the coupling will be more personalized and customized, which can be tailored according to the specific working conditions and requirements of different PU sandwich panel making machines, further improving the adaptability and matching degree of the coupling.

In conclusion, the special curved tooth coupling for PU sandwich panel making machines is a key component that adapts to various working conditions and ensures the stable operation of the production line. Its unique curved tooth structure, strong torque transmission capacity, good adaptability to speed and load changes, and excellent environmental adaptability make it superior to traditional couplings in the application of PU sandwich panel making machines. It not only improves the transmission efficiency and operation stability of the production line but also reduces the maintenance cost and extends the service life of the equipment. With the continuous progress of technology, the special curved tooth coupling will play a more important role in the development of the PU sandwich panel industry, providing strong support for the efficient and high-quality production of PU sandwich panels.
