Curved Tooth Coupling Empowers Sandwich Panel Making Machine Is Energy-saving And Efficient

In the modern manufacturing industry, the pursuit of energy conservation and efficiency has become an inevitable trend, driving the continuous upgrading and innovation of industrial equipment. Sandwich panel making machines, as key equipment in the construction and packaging fields, are widely used for producing composite panels with excellent thermal insulation, sound insulation and structural performance, which are essential materials for modern buildings, cold storage facilities and light-weight structures. However, the traditional sandwich panel making machines often face challenges such as high energy consumption, low transmission efficiency, frequent maintenance and unstable operation, which not only increase the production cost of enterprises but also restrict the improvement of production capacity and product quality.

To understand how curved tooth coupling empowers sandwich panel making machines, it is necessary to first clarify the core working principle of both and the intrinsic connection between them. A sandwich panel making machine is a highly automated industrial system designed for continuous production of high-quality composite panels, and its core production process includes metal coil unwinding, surface pretreatment, forming, foaming or bonding, composite, fixed length cutting, stacking and packaging. Each link requires precise coordination and stable power transmission to ensure the smooth operation of the entire production line. The power transmission system is the "heart" of the sandwich panel making machine, responsible for transmitting the power of the motor to each functional component, such as the uncoiler, forming unit, foaming system and cutting device. The performance of the power transmission system directly determines the operation efficiency, energy consumption and service life of the entire machine.

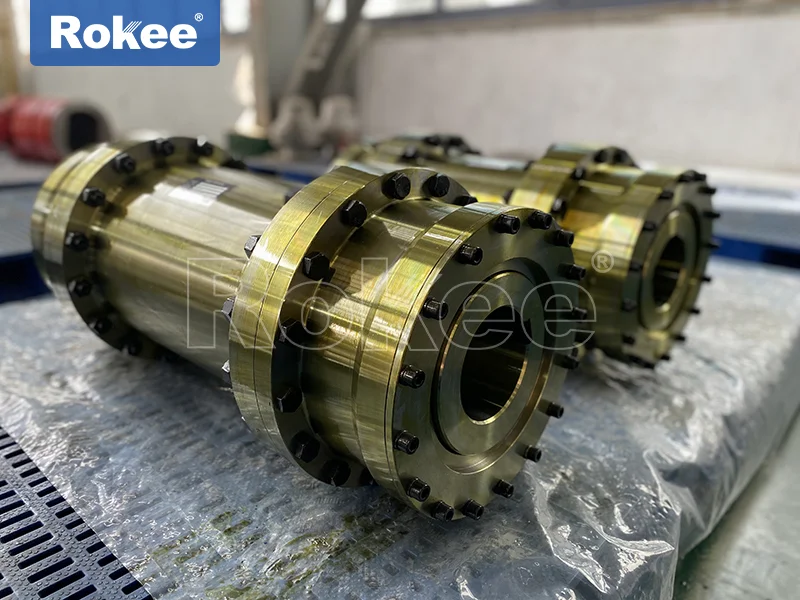

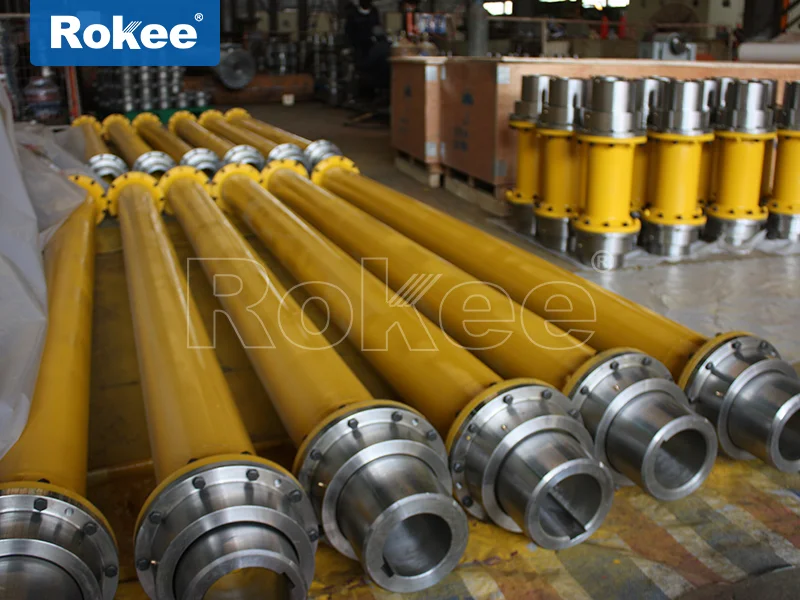

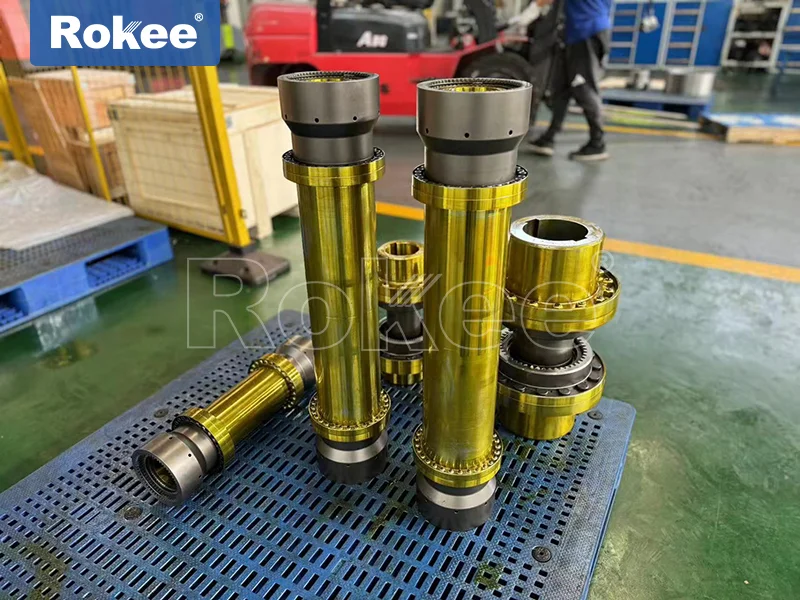

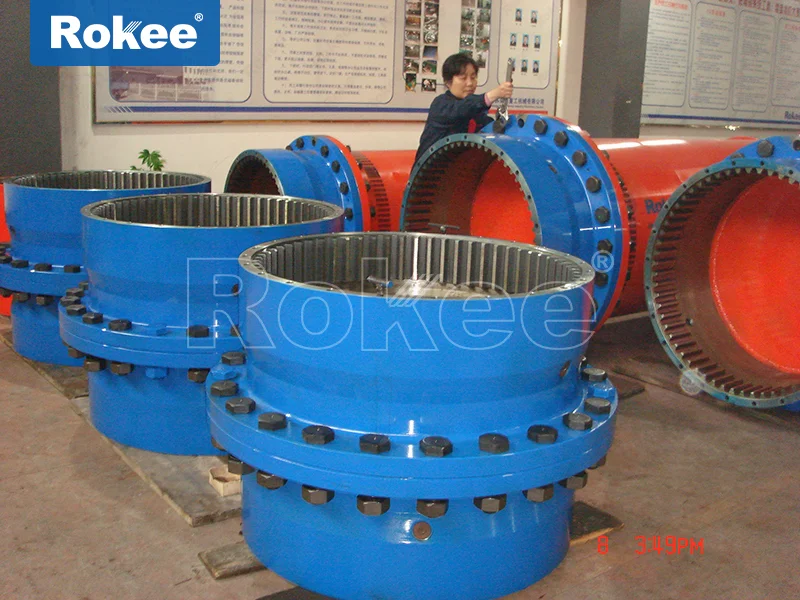

Curved tooth coupling, as an advanced mechanical transmission component, is specially designed to connect two rotating shafts, enabling torque transfer while accommodating misalignments and absorbing operational shocks. Its core structure mainly consists of a pair of gear hubs with curved external teeth and a corresponding pair of sleeve couplings with internal curved teeth. The gear hubs are usually installed at the ends of the shafts that need to be connected, while the sleeve couplings engage with the gear hubs to form a rigid yet flexible connection. The most distinctive feature of the curved tooth coupling is its curved tooth profile, which is designed to follow a circular arc or spiral path, different from the linear tooth profile of traditional straight tooth couplings. This unique design gives the curved tooth coupling excellent performance advantages in torque transmission, misalignment compensation and wear resistance, making it particularly suitable for the harsh working environment of sandwich panel making machines.

The energy-saving effect of curved tooth coupling in sandwich panel making machines is mainly reflected in reducing power loss during transmission and optimizing the energy utilization efficiency of the entire equipment. In traditional sandwich panel making machines, straight tooth couplings or other ordinary transmission components are often used. Due to the limitations of their tooth profile design, these components have problems such as uneven load distribution, large friction resistance and serious power loss during operation. When the motor transmits power to each functional component through these couplings, a considerable part of the energy is consumed in overcoming friction between the teeth, vibration and noise, resulting in low energy utilization efficiency and high energy consumption of the equipment. In contrast, the curved tooth profile of the curved tooth coupling is carefully designed to ensure that the contact between the hub and sleeve teeth occurs along a line rather than a single point, which distributes the transmitted torque over a larger surface area, reducing the stress per unit area and minimizing tooth wear. At the same time, the curved tooth design avoids edge pressure in the spline with angular and radial displacements, making the coupling operate almost free from wear, thus reducing the friction resistance during transmission.

The optimized lubrication design of curved tooth coupling further enhances its energy-saving performance. Good lubrication is crucial for reducing wear and power loss of the coupling. Curved tooth couplings usually adopt thin oil lubrication or long-acting grease lubrication, which can reduce wear to about 10% of that of ordinary grease lubrication, while also taking away the heat generated by meshing to prevent material performance degradation. The effective lubrication system ensures that the friction coefficient between the teeth is kept at a low level, reducing the energy loss caused by friction during the power transmission process. In practical applications, after replacing the traditional coupling with a curved tooth coupling, the energy consumption of the sandwich panel making machine can be reduced by 8% to 15%, which is a significant energy-saving effect for enterprises that need long-term continuous production. For example, a medium-sized sandwich panel production enterprise that operates 24 hours a day can save a considerable amount of electricity costs every year, effectively reducing the production cost and improving the market competitiveness of the enterprise.

In addition to the significant energy-saving effect, the curved tooth coupling also greatly improves the efficiency of the sandwich panel making machine, mainly through optimizing the transmission stability, reducing maintenance time and improving the production speed. The production process of sandwich panel making machines requires continuous and stable operation, and any interruption or failure will affect the production efficiency and product quality. Traditional couplings often have problems such as poor misalignment compensation ability, easy wear and short service life, which often lead to equipment shutdown and maintenance, resulting in reduced production efficiency. The curved tooth coupling has excellent misalignment compensation ability, which can effectively compensate for axial, radial and angular displacements between the shafts. Its allowable angular displacement can reach 1°30′, which is 50% higher than that of straight tooth couplings. This misalignment compensation ability is particularly important for sandwich panel making machines, because during the long-term operation of the equipment, the shafts are prone to slight deviations due to factors such as vibration, temperature rise and mechanical wear. The curved tooth coupling can absorb these deviations without imposing excessive forces on the connected shafts or bearings, ensuring the stable operation of the entire transmission system.

The high torque transmission capacity of the curved tooth coupling also provides strong support for improving the production efficiency of sandwich panel making machines. The curved tooth design increases the contact area between the teeth, making the torque transmission more stable and efficient. Compared with traditional straight tooth structures, the torque of the curved tooth coupling can be increased by 40%, and under the same size, its load-bearing capacity is 15% to 20% higher than that of straight tooth couplings. This enables the sandwich panel making machine to obtain more stable and powerful power support, especially in the processes of metal coil forming, high-pressure compounding and fixed-length cutting, which require large torque. The enhanced torque transmission capacity allows the equipment to operate at a higher speed without affecting the stability of the operation. The advanced sandwich panel production line equipped with curved tooth coupling can reach a speed of 10 to 15 meters per minute, producing over 5000 square meters of finished panels per day, which greatly improves the production efficiency compared with the traditional production line.

The long service life and low maintenance requirements of the curved tooth coupling also indirectly improve the efficiency of the sandwich panel making machine. The curved tooth coupling adopts high-quality materials and precision processing technology. The gear is usually made of alloy steel, which is subjected to quenching and tempering treatment to improve its hardness and wear resistance. The tooth surface is processed with high precision, and the integrated sealing end cover prevents lubricant leakage and dust entry, adapting to the high-temperature and dusty working environment of the sandwich panel making machine. These designs make the service life of the curved tooth coupling much longer than that of traditional couplings. Under normal use and regular maintenance, the service life of the curved tooth coupling can reach more than 5 years, while the service life of traditional straight tooth couplings is usually only 1 to 2 years. The extension of service life reduces the frequency of coupling replacement, thereby reducing the downtime caused by maintenance and replacement. At the same time, the curved tooth coupling has the characteristics of maintenance-free or low maintenance. Some models adopt a three-part plug-in design, which is easy to assemble and disassemble, further reducing the maintenance time and cost. For enterprises, reducing equipment downtime means increasing effective production time, which directly improves the overall production efficiency of the enterprise.

The application of curved tooth coupling also helps to improve the product quality of the sandwich panel making machine, which is another important embodiment of its empowerment. The quality of sandwich panels is closely related to the stability and precision of the production equipment. In the traditional production process, due to the unstable transmission of the coupling, the equipment is prone to vibration, which will affect the forming precision of the metal panel, the uniformity of the foaming core material and the bonding firmness between the panel and the core material. The curved tooth coupling has excellent vibration absorption capacity. Its curved tooth profile can absorb the vibration generated during the operation of the motor and the equipment, reduce the vibration amplitude of the entire production line, and ensure the stable operation of each functional component. The stable operation of the equipment ensures that the metal coil is uniformly uncoiled and formed, the foaming material is accurately mixed and injected, and the composite pressure is stable, thus improving the flatness, thickness uniformity and bonding strength of the sandwich panel.

In the process of metal panel forming, the multi-pass progressive rolling process requires the forming unit to have stable power transmission and precise speed control. The curved tooth coupling ensures that the power is transmitted stably and evenly to each set of precision rollers, making the flat metal coil gradually form the desired plate profile through 12 to 24 sets of precision rollers, avoiding defects such as uneven thickness and deformation of the metal panel caused by unstable power transmission. In the foaming and composite process, the curved tooth coupling drives the high-pressure foaming machine and the multi-roll pressure system to operate stably. The mixing accuracy of the foaming material can reach ±1%, and the foaming density can be accurately adjusted within the range of 30 to 60 kg/m³. The composite area maintains a constant temperature of 40 to 60 ℃, promoting sufficient curing or complete foaming reaction of the adhesive. The online thickness detector monitors the deviation of the finished product thickness in real time with an accuracy of ±0.2 mm, ensuring the consistency of the product quality. The fixed-length cutting adopts a hydraulic or servo-driven flying saw system, and the stable power transmission of the curved tooth coupling ensures that the cutting accuracy reaches ±1 mm, improving the cutting quality and reducing the waste of materials.

The adaptability of curved tooth coupling to different working conditions also expands the application scope of the sandwich panel making machine and further enhances its energy-saving and efficient performance. Sandwich panel making machines need to produce different types and specifications of sandwich panels according to different application scenarios, which requires the equipment to have good flexibility and adjustability. The curved tooth coupling has a wide range of torque and speed adaptation, which can be matched with different power motors and adapt to the speed adjustment requirements of different production processes. Whether it is the production of polyurethane sandwich panels, rock wool sandwich panels or EPS sandwich panels, the curved tooth coupling can provide stable and efficient power transmission, ensuring the smooth progress of the production process. At the same time, the curved tooth coupling can adapt to different working environments, including high temperature, low temperature, humidity and dust, which is consistent with the working environment of the sandwich panel making machine in the construction site and factory workshop. Its excellent environmental adaptability ensures that the equipment can operate stably for a long time in various harsh conditions, reducing the failure rate and improving the reliability of the equipment.

In the context of global energy conservation and emission reduction, the application of curved tooth coupling in sandwich panel making machines not only brings economic benefits to enterprises but also has important environmental significance. The reduction of energy consumption means the reduction of fossil fuel combustion, which helps to reduce carbon emissions and air pollution, in line with the global concept of green development. At the same time, the improvement of production efficiency reduces the occupation of production resources, and the reduction of material waste also conforms to the concept of circular economy. Enterprises that adopt curved tooth coupling can not only reduce production costs but also establish a green and environmentally friendly corporate image, which is conducive to the long-term development of enterprises in the increasingly strict environmental protection policies.

It is worth noting that the full play of the energy-saving and efficient advantages of curved tooth coupling in sandwich panel making machines also requires scientific selection, installation and maintenance. When selecting a curved tooth coupling, enterprises need to comprehensively consider the torque, speed, misalignment and working environment of the sandwich panel making machine, select the appropriate model and specification to ensure the matching between the coupling and the equipment. In the installation process, it is necessary to ensure the accurate installation of the coupling, adjust the coaxiality of the shafts, avoid excessive misalignment, and ensure the normal operation of the coupling. In the daily use process, regular inspection and maintenance of the coupling are required, including checking the lubrication status, the wear of the tooth surface and the sealing performance, and timely adding lubricating oil and replacing worn parts to extend the service life of the coupling and maintain its excellent performance.

With the continuous development of the manufacturing industry, the requirements for energy conservation and efficiency of sandwich panel making machines will become higher and higher. Curved tooth coupling, as a high-performance transmission component, will play a more important role in the upgrading and transformation of sandwich panel making machines. In the future, with the continuous improvement of material technology and processing technology, the performance of curved tooth coupling will be further optimized, and its energy-saving and efficient advantages will be more prominent. It is expected that curved tooth coupling will be widely used in more sandwich panel making machines, helping enterprises to achieve sustainable development and promoting the healthy and green development of the entire sandwich panel manufacturing industry.

In conclusion, the application of curved tooth coupling has brought a revolutionary change to the sandwich panel making machine. Through its unique structural design and excellent performance, it effectively reduces the energy consumption of the equipment, improves the production efficiency and product quality, reduces the maintenance cost and extends the service life of the equipment. It not only solves the pain points of traditional sandwich panel making machines but also provides strong support for enterprises to reduce costs, increase efficiency and achieve green development. In the era of pursuing energy conservation and efficiency, curved tooth coupling has become an indispensable core component of sandwich panel making machines, empowering the sustainable development of the sandwich panel manufacturing industry and making important contributions to the development of the modern manufacturing industry.
