LX Star Couplings
In the field of mechanical power transmission, flexible couplings play an irreplaceable role in connecting driving shafts and driven shafts, transferring torque efficiently, and mitigating the adverse effects of shaft misalignment, vibration and shock loads on the entire transmission system. Among various flexible coupling products, the LX star coupling stands out for its compact structure, stable performance and wide adaptability, becoming a preferred component for medium and small power transmission systems in multiple industries.

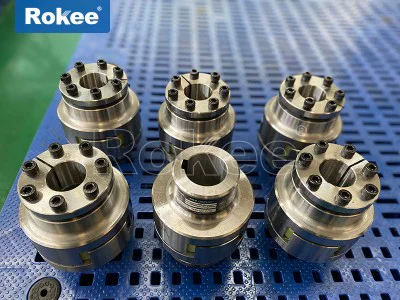

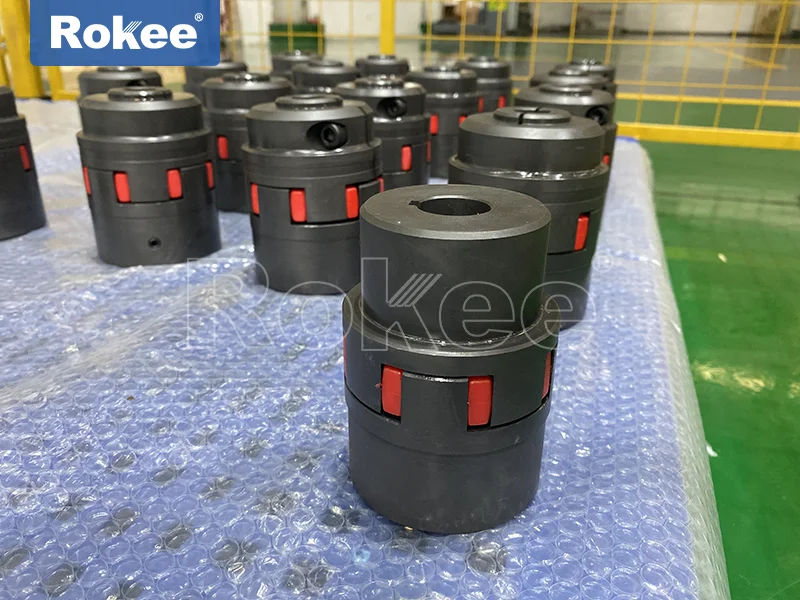

To start with the basic structural composition of the LX star coupling, it belongs to a typical elastic flexible coupling, and its core structure is composed of two key metal hubs and a star-shaped elastic intermediate element, forming a three-piece assembly design that is simple and efficient. The two metal hubs are the main connecting parts of the coupling, which are respectively fixed on the driving shaft and the driven shaft through shaft hole matching and fastening structures. The inner hole of each hub is processed with high precision to ensure tight fitting with the shaft diameter, and common fastening methods include set screw locking, clamping sleeve fixing and keyway connection, which can be selected according to the actual transmission requirements to ensure the stability of torque transmission and prevent radial slipping or axial movement during operation. The outer side of each hub is processed with evenly distributed claw-shaped protrusions, and the number of these claws is matched with the number of lobes of the star-shaped elastic element, arranged in a staggered manner to form a stable embedded structure.
The star-shaped elastic intermediate element is the core functional component of the LX star coupling, which determines the flexibility, shock absorption and misalignment compensation performance of the entire coupling. This elastic element is usually made of high-performance polymer elastomer materials, with good elasticity, wear resistance, fatigue resistance and temperature adaptability. The star-shaped lobe structure is designed to fit perfectly with the claw grooves of the two metal hubs, and when the coupling is assembled, the lobes are embedded between the claws of the two hubs without gaps, realizing the non-rigid connection between the two hubs. Unlike rigid couplings, this structural design abandons direct metal-to-metal contact for torque transmission, instead relying on the compression and deformation of the elastic element to transfer rotational force, which fundamentally weakens the transmission of vibration and impact, and gives the coupling unique flexible transmission advantages. The overall structure of the LX star coupling is compact and lightweight, with small moment of inertia, which is very suitable for high-speed rotation occasions, and it does not require lubrication during daily use, reducing maintenance workload and operational costs.
Next, the core performance characteristics of the LX star coupling are analyzed in detail, which are the key factors for its wide application in mechanical transmission. First of all, it has excellent torque transmission performance, which can meet the power transmission needs of medium and small loads. The structural design of the claw-embedded star elastic element ensures a large contact area between the metal hub and the elastic component, enabling efficient transmission of torque without obvious power loss, and can withstand instantaneous overload shocks within a certain range without damaging the coupling body. Under normal working conditions, the torque transmission is stable and continuous, and there is no obvious backlash during forward and reverse rotation, which ensures the accuracy and stability of the transmission system, especially suitable for occasions requiring precise speed regulation and position control.
Secondly, the LX star coupling has outstanding misalignment compensation capability, which can effectively adapt to the relative displacement between the driving shaft and the driven shaft caused by installation errors, thermal expansion and contraction, mechanical deformation and other factors in actual operation. It can compensate three types of common shaft misalignments: angular misalignment, radial misalignment and axial misalignment. For angular misalignment, it allows a small angle deviation between the two shafts without affecting the normal operation of the coupling; for radial misalignment, it can absorb the radial offset between the shafts through the elastic deformation of the star element; for axial misalignment, it has a certain axial telescopic allowance to adapt to the axial movement of the shafts during operation. This misalignment compensation performance can reduce the additional stress on the shafts, bearings and other related components caused by misalignment, effectively prolong the service life of the entire transmission system, and reduce the failure rate caused by poor shaft alignment.
In addition, the LX star coupling has remarkable shock absorption and noise reduction performance, which can improve the operational stability and comfort of mechanical equipment. The elastic star element acts as a natural buffer, which can absorb the vibration and impact generated during the operation of the power source, such as the pulsation of the motor, the impact of the gearbox, and the load mutation of the working parts, preventing these vibrations from being transmitted to the entire equipment and avoiding resonance and noise problems. In industrial production scenarios, excessive vibration and noise not only affect the working environment but also easily cause fatigue damage to precision components, and the shock absorption effect of this coupling can effectively alleviate such problems, making the equipment run more smoothly and quietly. At the same time, the elastomer material has good wear resistance and fatigue resistance, can maintain stable performance under long-term cyclic load, and is not prone to cracking, deformation or aging under normal working conditions, ensuring the long-term reliable operation of the coupling.
The LX star coupling also has the advantages of easy installation, disassembly and maintenance. Due to its simple three-piece structure, the installation process is very convenient, only requiring the two hubs to be fixed on the corresponding shafts respectively, and then the star elastic element to be embedded between the two hubs to complete the assembly, without complex tools or professional installation technology. When the elastic element is worn or damaged after long-term use, it can be replaced quickly and conveniently without disassembling the hubs or adjusting the shaft position, which greatly shortens the maintenance time and reduces the downtime loss caused by equipment maintenance. This easy-maintenance feature makes the LX star coupling more practical in industrial applications, especially in production lines requiring high operational efficiency.
In terms of classification, the LX star coupling can be divided into different types according to structural design, connection mode and application scenarios, each with its own targeted performance advantages to meet the diversified needs of different transmission systems. According to the structural form of the hub, it can be divided into standard type, single flange type, double flange type and clamping type. The standard type LX star coupling has a compact hub structure, small axial size, and is suitable for occasions with limited installation space and conventional transmission requirements; the single flange type hub is designed with a flange plate on one side, which is convenient for fixed installation with the equipment base, enhancing the installation stability, and is suitable for transmission systems requiring high radial rigidity; the double flange type hub has flanges on both sides, realizing two-way fixed connection, with stronger load-bearing capacity and better stability, suitable for medium and heavy load transmission occasions; the clamping type hub adopts a split clamping structure, which is fixed on the shaft through a tightening screw, without damaging the shaft surface, with high coaxiality and convenient disassembly, suitable for precision transmission equipment requiring frequent disassembly and maintenance.
According to the performance and material of the elastic element, the LX star coupling can be divided into ordinary type, high elasticity type and high temperature resistant type. The ordinary type elastic element is made of conventional polyurethane elastomer, with moderate hardness, suitable for normal temperature, conventional load and general working conditions, which is the most widely used type; the high elasticity type elastic element is made of high-elasticity polymer material, with better flexibility and shock absorption effect, stronger misalignment compensation ability, suitable for occasions with large vibration, large shaft misalignment and requiring high buffer performance; the high temperature resistant type elastic element is made of special heat-resistant elastomer material, which can adapt to higher operating temperature environments, maintain stable elasticity and mechanical properties in high temperature conditions, not easy to soften or age, suitable for transmission systems working in high temperature environments such as metallurgy, baking equipment.
In addition, according to the torque transmission level, the LX star coupling can be divided into light load type, medium load type and heavy load type. The light load type has a small size and low torque capacity, suitable for small power transmission equipment such as precision instruments, micro motors and office machinery; the medium load type has moderate size and torque performance, covering most industrial small and medium power transmission scenarios, which is the mainstream type in the market; the heavy load type has a reinforced hub structure and a thicker elastic element, with higher torque bearing capacity and stronger rigidity, suitable for medium power mechanical equipment with large load fluctuations and heavy working conditions.
The excellent structural design and comprehensive performance make the LX star coupling widely used in various industrial fields and mechanical equipment, covering almost all scenarios requiring flexible torque transmission and misalignment compensation. In the field of general mechanical manufacturing, it is widely used in the transmission system of fans, water pumps, compressors and other fluid machinery, connecting the motor shaft and the working shaft of the fluid machinery, compensating for the shaft misalignment caused by equipment installation and thermal expansion, absorbing the vibration generated during the operation of the fluid machinery, reducing noise and protecting the motor and bearings from damage. In the production line of light industry such as textile, printing and packaging, the LX star coupling is used in the transmission system of textile machines, printing presses, packaging machines and other equipment, ensuring stable torque transmission, reducing the impact on precision components, and meeting the high-speed and high-precision operation requirements of light industry equipment, avoiding material damage or processing errors caused by vibration and misalignment.
In the field of automated production and mechanical processing, the LX star coupling plays an important role in CNC machine tools, automated assembly lines, robotic arms and other precision equipment. The small backlash and high transmission accuracy of the coupling ensure the positioning accuracy and motion stability of the machine tool spindle and robotic arm, and its good shock absorption performance can protect the precision transmission components such as ball screws and gears, prolong the service life of the equipment and improve the processing accuracy and production efficiency. In the field of transportation machinery and agricultural machinery, it is used in the transmission system of small conveyors, harvesters, seeders and other equipment, adapting to the complex and variable working conditions, withstanding the impact of field operations and material transportation, and ensuring the reliable operation of mechanical power transmission.
In addition, the LX star coupling is also widely used in the transmission system of medical machinery, food processing machinery and other equipment with high environmental requirements. Its non-lubrication design avoids oil pollution to the working environment, and the hygienic and non-toxic elastic material can meet the cleanliness requirements of food and medical processing, ensuring the safety and hygiene of the production process. In small power electric tools and household mechanical equipment, the compact structure and stable performance of the LX star coupling also make it an ideal transmission component, ensuring the normal operation of the equipment and improving the user experience.
In practical application, the selection of the LX star coupling needs to comprehensively consider multiple factors such as the torque of the transmission system, the speed of the shaft, the type and size of the shaft misalignment, the working environment temperature and the installation space, to select the appropriate type, size and elastic element material, so as to give full play to the performance advantages of the coupling. If the selected model is too small, it will lead to insufficient torque bearing capacity and easy damage; if the model is too large, it will increase the installation space and equipment cost, and may also affect the dynamic performance of the transmission system. At the same time, during the installation process, it is necessary to ensure the coaxiality of the two shafts as much as possible, avoid excessive misalignment exceeding the compensation range of the coupling, and regularly check the wear condition of the elastic element during use, replace the damaged parts in time, to ensure the long-term efficient and stable operation of the transmission system.
In summary, the LX star coupling has become a key component in the field of mechanical power transmission due to its simple and compact structure, excellent torque transmission, misalignment compensation, shock absorption and noise reduction performance, as well as diverse classification and wide application scenarios. Its design perfectly balances the rigidity of torque transmission and the flexibility of vibration reduction, solving the common problems of shaft misalignment, vibration and impact in mechanical transmission, and improving the reliability, stability and service life of mechanical equipment. With the continuous development of industrial automation and mechanical manufacturing technology, the demand for high-performance flexible transmission components is increasing, and the LX star coupling will continue to be optimized and upgraded in terms of material technology and structural design, adapting to more extreme working conditions and higher performance requirements, and continuing to play an important role in various mechanical transmission systems.
