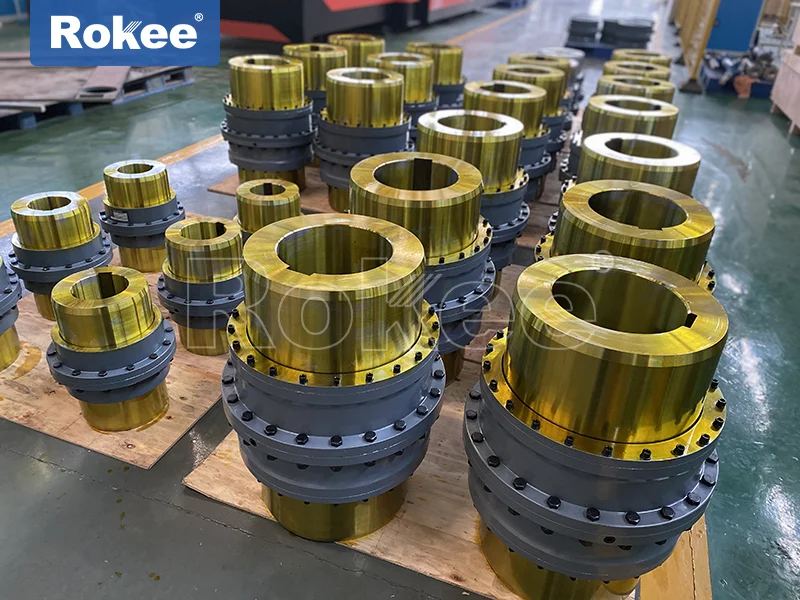

Sandwich Panel Machine With Curved Tooth Coupling Is Corrosion-resistant And Durable

In the modern manufacturing industry, sandwich panels have become an indispensable material in various fields such as construction, cold storage, and industrial workshops due to their excellent thermal insulation, sound insulation, and structural stability. The production efficiency and product quality of sandwich panels are directly determined by the performance of sandwich panel machines. Among the numerous components that constitute a sandwich panel machine, the coupling plays a crucial role as a key transmission part, responsible for connecting the motor and the working mechanism, transmitting torque, and compensating for the relative displacement between the shafts. Among various types of couplings, the curved tooth coupling stands out for its unique structural design and excellent performance, making the sandwich panel machine equipped with it exhibit remarkable corrosion resistance and durability, which has won wide recognition in the industry.

To understand why the sandwich panel machine with curved tooth coupling has outstanding corrosion resistance and durability, it is necessary to first explore the structural characteristics and working principle of the curved tooth coupling. Different from the traditional straight tooth coupling, the outer teeth of the curved tooth coupling are designed into a spherical shape, with the center of the sphere located on the axis of the gear. This special structural design not only gives it excellent displacement compensation capacity but also lays a solid foundation for its corrosion resistance and durability. The tooth clearance of the curved tooth coupling is slightly larger than that of ordinary couplings, which can not only transmit greater torque but also allow a larger angular displacement, ensuring stable transmission even when there are radial, axial, or angular deviations between the two shafts of the sandwich panel machine. This flexibility effectively reduces the stress concentration caused by shaft misalignment during the operation of the machine, thereby reducing wear and tear on the coupling and related components, and extending the service life of the entire equipment.

The corrosion resistance of the curved tooth coupling is mainly reflected in its material selection and structural design. In the production process of sandwich panel machines, they often need to work in complex environments, such as construction sites with high humidity, cold storage workshops with low temperature and high humidity, or even coastal areas with high salt content in the air. These environments are extremely easy to cause corrosion of metal components, which affects the normal operation and service life of the machine. The curved tooth coupling used in sandwich panel machines is usually made of high-quality alloy steel or stainless steel, which has excellent corrosion resistance. For example, some curved tooth couplings are made of stainless steel materials such as V4A (1.4571), which can effectively resist the corrosion of moisture, salt spray, and chemical media, ensuring stable performance even in harsh corrosive environments. In addition, the surface of the curved tooth coupling is often treated with precision machining, quenching, and polishing, which not only improves the surface finish and hardness of the coupling but also forms a dense protective layer on the surface, preventing the invasion of corrosive substances and further enhancing its corrosion resistance.

The sealing structure of the curved tooth coupling also plays an important role in improving its corrosion resistance. The sealing device is an essential part of the curved tooth coupling, which can prevent lubricant leakage and external impurities such as dust, moisture, and chemical substances from entering the meshing surface of the gears. Once these impurities enter the meshing area, they will not only accelerate the wear of the tooth surface but also cause corrosion of the gear teeth, affecting the service life of the coupling. The curved tooth coupling is equipped with a high-performance sealing device, which adopts a multi-layer sealing structure to ensure good sealing performance. This sealing structure can effectively isolate the internal components of the coupling from the external corrosive environment, keep the meshing surface of the gear clean and dry, and reduce the corrosion risk of the coupling. At the same time, the sealed environment also helps to maintain the lubrication effect of the lubricant, reducing friction and wear between the gear teeth, and further improving the durability of the coupling.

The durability of the sandwich panel machine with curved tooth coupling is closely related to the structural stability and wear resistance of the curved tooth coupling. The curved tooth coupling has a simple but exquisite core structure, mainly composed of an internal gear ring and an external gear sleeve. The internal gear ring is usually a ring-shaped structure with involute straight teeth processed on the inner circumference, and the external gear sleeve is designed with spherical curved teeth. The working principle of the curved tooth coupling is to transmit torque through the precise meshing of the internal and external teeth. When the driving shaft of the sandwich panel machine rotates, the power is transmitted to the driven shaft through the meshing of the external gear sleeve and the internal gear ring, driving the working mechanism of the machine to operate stably. Due to the special design of the spherical curved teeth, when there is relative displacement between the two shafts, the tooth surface can maintain good surface contact instead of edge contact, avoiding stress concentration and reducing the wear of the tooth surface. This design not only improves the torque transmission capacity of the coupling but also reduces the damage caused by wear, extending the service life of the coupling.

The wear resistance of the curved tooth coupling is further enhanced by advanced processing technology and material treatment. The gear teeth of the curved tooth coupling are processed by precision machining technology, ensuring high dimensional accuracy and smooth tooth surface. After precision machining, the gear teeth are also subjected to heat treatment processes such as quenching and tempering, which significantly improve the hardness and wear resistance of the tooth surface. For example, the forming rollers of the sandwich panel machine are made of high-quality alloy steel through precision machining, quenching, and polishing treatment, which have high hardness and good wear resistance, and can cooperate with the curved tooth coupling to ensure stable operation of the machine. In addition, some curved tooth couplings adopt nylon internal gear sleeves, which have a low friction coefficient and good wear resistance. The wear resistance coefficient of nylon materials under dry friction conditions can reach 0.12, and they can work stably in the temperature range of -40 ℃ to 120 ℃, further improving the durability of the coupling. The use of these high-performance materials and advanced processing technologies enables the curved tooth coupling to maintain stable performance even under long-term high-load operation, reducing the frequency of maintenance and replacement, and improving the overall durability of the sandwich panel machine.

The curved tooth coupling also has excellent vibration and noise reduction performance, which indirectly improves the durability of the sandwich panel machine. During the operation of the sandwich panel machine, the motor and working mechanism will generate a certain amount of vibration, which will not only affect the stability of the machine operation but also accelerate the wear and tear of components. The curved tooth coupling, especially the one with a nylon internal gear sleeve, can effectively absorb vibration and reduce noise. The nylon material has good elasticity and shock absorption performance, which can buffer the vibration generated during the operation of the machine, reduce the impact of vibration on the coupling and other components, and avoid damage caused by excessive vibration. At the same time, the smooth meshing of the curved teeth also reduces the noise generated during the transmission process, creating a more comfortable working environment and reducing the fatigue damage of the machine components caused by long-term noise stimulation.

The application of the curved tooth coupling also optimizes the overall performance of the sandwich panel machine, making the machine more stable and reliable in long-term operation. The sandwich panel machine is a highly automated industrial equipment that realizes continuous production from raw material uncoiling to finished product cutting. The entire production process involves multiple links such as uncoiling, roll forming, foaming, laminating, and cutting, which requires the transmission system to have high stability and reliability. The curved tooth coupling, with its excellent torque transmission capacity and displacement compensation capacity, can ensure the stable transmission of power between the motor and each working mechanism, making each link of the production process coordinate and consistent. For example, in the foaming process of the sandwich panel, the curved tooth coupling can ensure that the foaming machine operates at a stable speed, making the foam material evenly distributed, and improving the quality of the sandwich panel. In the cutting process, the stable transmission of the curved tooth coupling can ensure the cutting accuracy of the sandwich panel, reducing the waste of materials. The stable operation of the machine not only improves production efficiency and product quality but also reduces the wear and tear of components caused by unstable operation, further enhancing the durability of the machine.

In addition to the excellent performance of the curved tooth coupling itself, the rational design and maintenance of the sandwich panel machine also play an important role in ensuring its corrosion resistance and durability. The sandwich panel machine equipped with a curved tooth coupling usually adopts a modular design, which is convenient for maintenance and replacement of components. The modular design allows different functional units to be easily combined or replaced, reducing the downtime caused by maintenance and improving the overall equipment effectiveness. At the same time, the machine is equipped with an intelligent control system, which can monitor the operation status of the machine in real time, detect potential faults in advance, and remind operators to carry out maintenance in a timely manner. For example, the intelligent control system can monitor the temperature, vibration, and other parameters of the curved tooth coupling, and when abnormal parameters are found, it will issue an alarm in time, preventing further damage to the coupling and the machine. Regular maintenance is also an important means to ensure the corrosion resistance and durability of the machine. Operators need to regularly check the sealing performance of the curved tooth coupling, add lubricant, and clean the surface of the coupling to remove dust and corrosive substances, ensuring the normal operation of the coupling and extending its service life.

The corrosion resistance and durability of the sandwich panel machine with curved tooth coupling have been fully verified in practical applications. In the construction industry, sandwich panel machines are often used in outdoor construction sites, where they are exposed to wind, rain, and high humidity environments for a long time. The curved tooth coupling with excellent corrosion resistance can effectively resist the erosion of rainwater and moisture, ensuring the stable operation of the machine. In the cold storage industry, the low temperature and high humidity environment inside the cold storage is very easy to cause corrosion of metal components. The sandwich panel machine equipped with a curved tooth coupling can work stably in this environment for a long time, reducing the frequency of equipment failure and maintenance. In coastal areas, the high salt content in the air is a serious threat to the corrosion of metal equipment. The curved tooth coupling made of stainless steel can effectively resist salt spray corrosion, ensuring the service life of the sandwich panel machine. These practical application cases fully show that the sandwich panel machine with curved tooth coupling has excellent corrosion resistance and durability, which can adapt to various complex working environments and meet the long-term production needs of enterprises.

With the continuous development of the manufacturing industry, the requirements for the performance of sandwich panel machines are getting higher and higher. Corrosion resistance and durability, as important indicators of the performance of sandwich panel machines, directly affect the production efficiency, product quality, and economic benefits of enterprises. The curved tooth coupling, with its unique structural design, high-quality material selection, and advanced processing technology, provides a reliable guarantee for the corrosion resistance and durability of sandwich panel machines. Compared with traditional couplings, the curved tooth coupling has obvious advantages in displacement compensation, corrosion resistance, wear resistance, and vibration reduction, making the sandwich panel machine equipped with it more competitive in the market. In the future, with the continuous progress of technology, the design and manufacturing technology of curved tooth couplings will be further optimized, and their performance will be further improved, which will promote the continuous development of the sandwich panel machine industry towards a more efficient, stable, and durable direction.

In conclusion, the sandwich panel machine with curved tooth coupling has remarkable corrosion resistance and durability, which is closely related to the structural characteristics, material selection, processing technology, and sealing design of the curved tooth coupling. The curved tooth coupling not only has excellent torque transmission capacity and displacement compensation capacity but also can effectively resist corrosion and wear, reduce vibration and noise, and ensure the stable operation of the sandwich panel machine in various complex working environments. The application of the curved tooth coupling not only improves the overall performance of the sandwich panel machine but also reduces the maintenance cost of the machine, extends the service life of the equipment, and brings greater economic benefits to enterprises. With the continuous expansion of the application field of sandwich panels, the sandwich panel machine with curved tooth coupling will play a more important role in the manufacturing industry, contributing to the development of the industry with its excellent performance.
