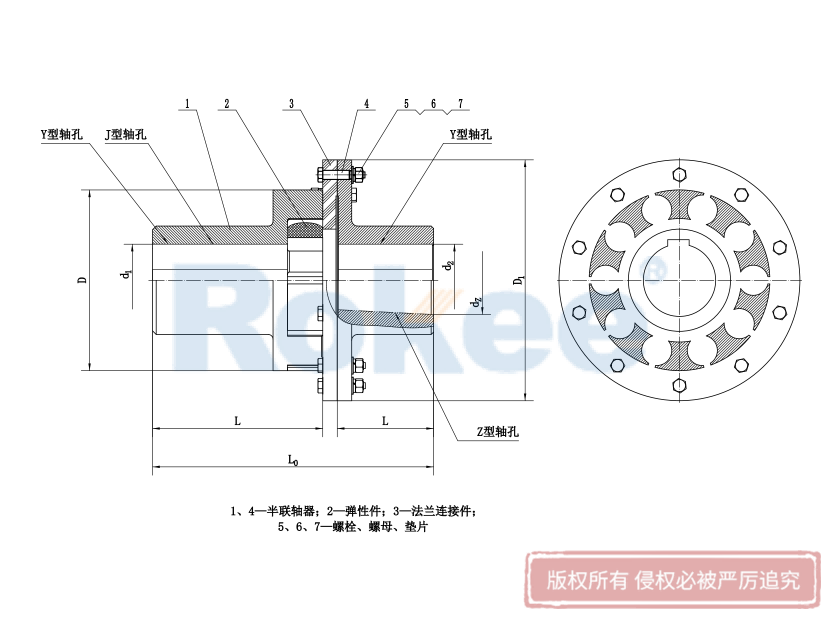

LMD(MLZ)型梅花弹性联轴器

LMD梅花弹性联轴器增加了过渡联接,更换弹性体时无需轴向移动半联。

型号旧型号公称转矩/N.m许用
转速
轴孔直径LLoDDl弹性件
型号
重量转动
惯量
弹性件硬度
a/Hab/Hb
80+560+5[n]r/mind1、d2、dzkgkg.m2
LMD1MLZ12545850012,14,16,18,19,20,22,24 2535925090MT11.2060.00082
LMD250100760016,18,19,20,22,24,25,28,3038101.560100MT21.6480.0014
LMD3MLZ2100200690020,22,24,25,28,30,324011070110MT32.3570.0024
LMD4MLZ3140280620022,24,25,28,30,32,35,38,404512285125MT43.5560.005
LMD5MLZ4350400500025,28,30,32,35,38,40,42,4550138.5105150MT56.3610.0135
LMD6MLZ5400710410030,32,35,38,40,42,45,4855155125185MT610.7680.0329
LMD7MLZ66301120370035*,38*,40*,42*,45,48,50,5560172145205MT715.3020.0581
LMD8MLZ711202240310045*,48*,50,55,56,60,63,6570195170240MT822.7170.1175
LMD9MLZ818003550280050*,55*,56*,60,63,65,70,71,75,8080224200270MT934.4390.233
LMD10MLZ928005600250060*,63,65*,70,71,75,80,85,90,95,10090248230305MT1051.3580.459
LMD11MLZ1045009000220070*,71*,75,80*,85*,90,95,100,110,120100284260350MT1181.3020.977
LMD12MLZ11630012500190080*,85*,90*,95*,100,110,120,125,130115321300400MT12115.531.751
LMD13MLZ121120020000160090*,95*,100*,110*,120*,125*,130,150,160125348360460MT13161.793.366
LMD14MLZ1312500250001500100*,110*,120*,125*,130*,140,150,160135358400500MT14196.34.867

标签:LMD梅花联轴器,MLZ梅花联轴器,LMD梅花弹性联轴器,MLZ梅花弹性联轴器

《LMD(MLZ)型梅花弹性联轴器》发布于2020年6月16日
