WJA型球面滚子卷筒联轴器

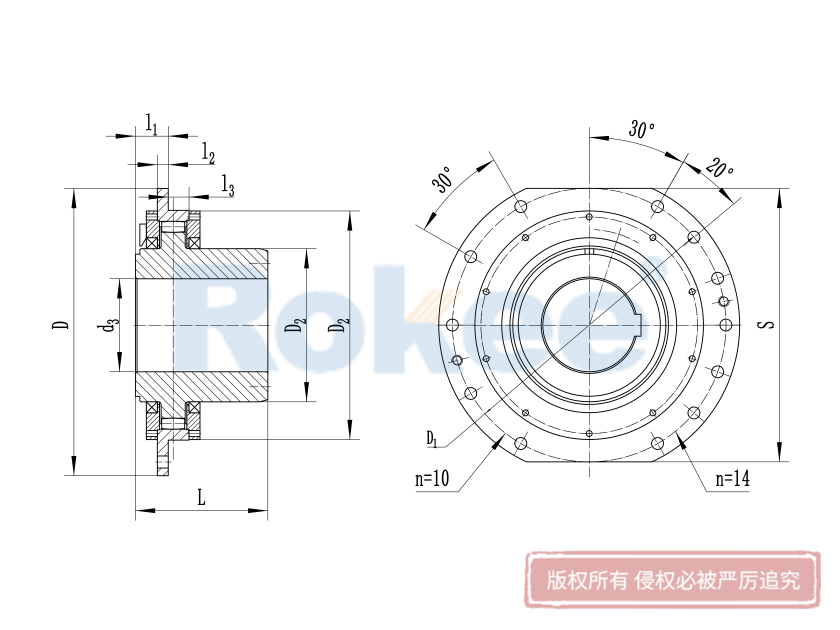

WJA起重卷筒联轴器是一种球面滚子联轴器,有带联接法兰的外套,球面滚子,半联轴器及内外盖板及密封系统组成,能够传递较大扭矩及承受径向载荷。联轴器与减速机输出轴的联接采用渐开线花键副设计。

型号公称
转矩
Tn
kN·m
许用
径向力
kN
dLDD1D2D3nxd1sl1l2l3rc磨损
刻度
m1
转动
惯量
kg·m2
质量
kg
H7h6h9
WJA1516.540,42,45,48842502201608510xΦ1422042122421.640.06512.8
50,55
WJA27.118.545,48,50,55842802501809010xΦ142504212242.51.640.10216.1
60107215.9
WJA392048,50,55843202802009510xΦ182804515252.51.640.19321.9
60,65107221.8
WJA4142560,65,70,7510734030022013010xΦ183004515252.5240.27829.8
80,8513229.5
WJA5183560,6510736032024015010xΦ183204515252.5260.36935
80,85,90,951322.536.5
WJA622.438.580,85,90,9513238034026016010xΦ1834045152532.560.49643.3
100,11016743.7
WJA7284280,85,90,9513240036028017010xΦ1836047153332.560.65453
100,110,12016752
WJA835.549100,110,12016742038031020010xΦ1838047153332.560.9569
130,140202367
WJA95070100,110,12016745040034023010xΦ2240052202832.561.4589
130,140,150202388.5
WJA10100120130,140,15020255050042028010xΦ225006020283383.81156
160,170,180242151
WJA11160140160,170,18024258053045030014xΦ225306020283384.932184
190,2002824181
WJA12224170190,200,22028265060053036014xΦ225806525333489.09267
240,250330247
WJA13255300200,22028268063056040026xΦ2260065253544812.1319
240,250,260330311
WJA14500340240,250,26033071066060044026xΦ2664082354344818.24.3
280,3003805394
WJA15630380240,250,26033078073067050026xΦ2670082354344829.4544
280,300,3203805560
WJA16710450280,300,32038085080073055026xΦ2676082354345844693
340,360,3804506664

《WJA型球面滚子卷筒联轴器》发布于2020年6月16日
